MX950-9.50 Terminal block green color brass diamond Wholesale

Home / Products / Terminal series / Fixed terminal blocks / Block / MX950-9.50 Terminal block green color brass diamond

Product Category

MX950-9.50 Terminal block green color brass diamond

Pitch：9.50/7.62mm
  • MX950-9.50 Terminal block green color brass diamond
  • MX950-9.50 Terminal block green color brass diamond
  • MX950-9.50 Terminal block green color brass diamond

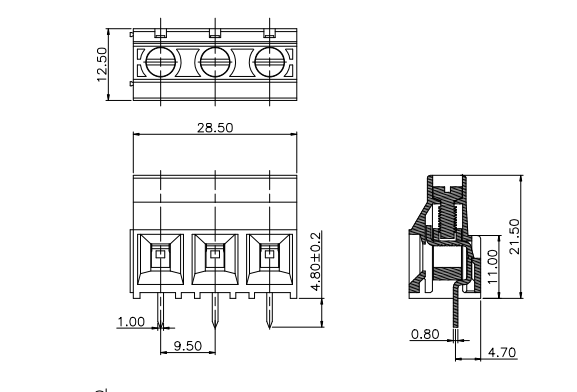

Product description Technical parameter Technical drawing Ordering method


Product brand：

Product color：
Green
Product bits：
2-3P
Product service：
Provide specification/step quotation/professional and attentive after-sales service
Product advantage：
● Screwed frame connection for greater contact surface and force, with bottom cover to protect the immersed tin
● The crimp frame can be moved up and down by twisting the screw, thus fixing the wire between the conductive part and the crimp frame and protecting the wire from damage
● Can connect wire cross-sectional area 26~12AWG (0.5~2.50mm²)
● Tin-plated solder pins with heat dissipation channels and thin shrinkage of the pin ends for easy installation
Internal components of the terminal：
Plastic shell: Nylon PA66
Conductive parts: phosphor bronze nickel-plated Anti-oxidation
Crimp frame: copper alloy nickel-plated
Screws: carbon steel screws, one or cross, galvanized zinc or nickel plated

Leave your requirements, and we will contact you!

EAST——Dedicated to excellent quality

AnHui EAST Electronic Technology Co.,Ltd. is a China MX950-9.50 Terminal block green color brass diamond Suppliers and Wholesale MX950-9.50 Terminal block green color brass diamond Factory. The factory is located in Yingjiang Economic Development Zone, Anqing City, Anhui Province, with a manufacturing base area of 15,000 square meters. Our main products include 5G optical fiber network generic cabling products, terminal blocks, sheet metal non-standard chassis, network connector, dial switch, pin header/ female header and other electronic connectors.

EAST Electronic owns outstanding R & D technology, automation equipment manufacturing capabilities and advanced testing technology in the industry, automation equipment manufacturing capabilities and rigorous testing technology. It can produce products of high reliability and durability, and create value for global customers. Meanwhile, it provides professional ODM / OEM solutions according to the personalized needs to offer customers value-added services.
