MX128V-5.0 5.08 Screw terminal block vertical type height 14.3mm

Pitch：5.00/5.08mm
  • MX128V-5.0 5.08 Screw terminal block vertical type height 14.3mm

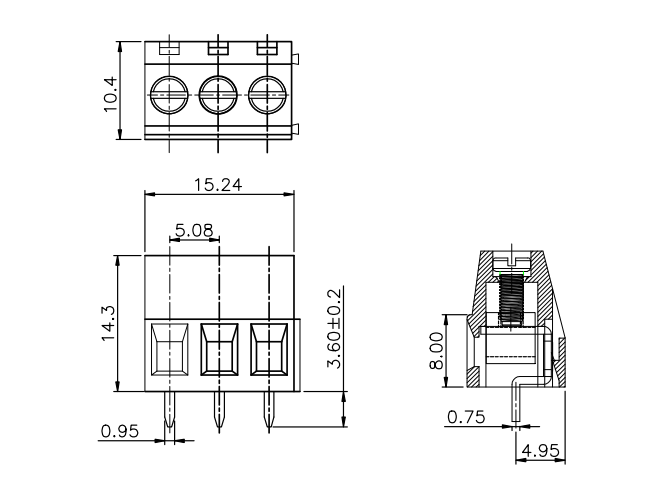

Product description Technical parameter Technical drawing Ordering method


Product brand：

Product color：
Green
Product bits：
2-3P
Product service：
Provide specification/step quotation/professional and attentive after-sales service
Product advantage：
● Screw-frame connection for large contact surface and force
● The crimp frame can be moved up and down by twisting the screw, thus fixing the wire between the conductive part and the crimp frame and protecting the wire from damage
● Can connect wire cross-sectional area 30~12AWG (1.0~2.50mm²)
● Tin-plated solder pins with heat dissipation channels and thin shrinkage of the pin ends for easy installation
Internal components of the terminal：
Plastic shell: Nylon PA66
Conductive parts: phosphor bronze nickel-plated Anti-oxidation
Crimp frame: copper alloy nickel-plated
Screws: carbon steel screws, one or cross, galvanized zinc or nickel plated
