MX136T-10.16 Terminal block green color pitch 10.16mm Wholesale

Home / Products / Terminal series / Fixed terminal blocks / Block / MX136T-10.16 Terminal block green color pitch 10.16mm

Product Category

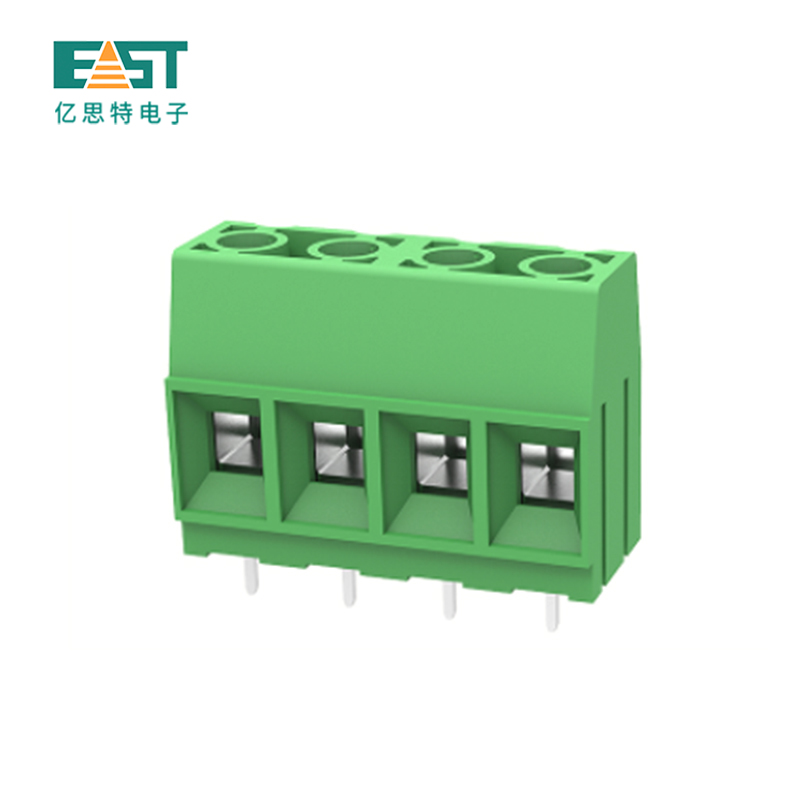

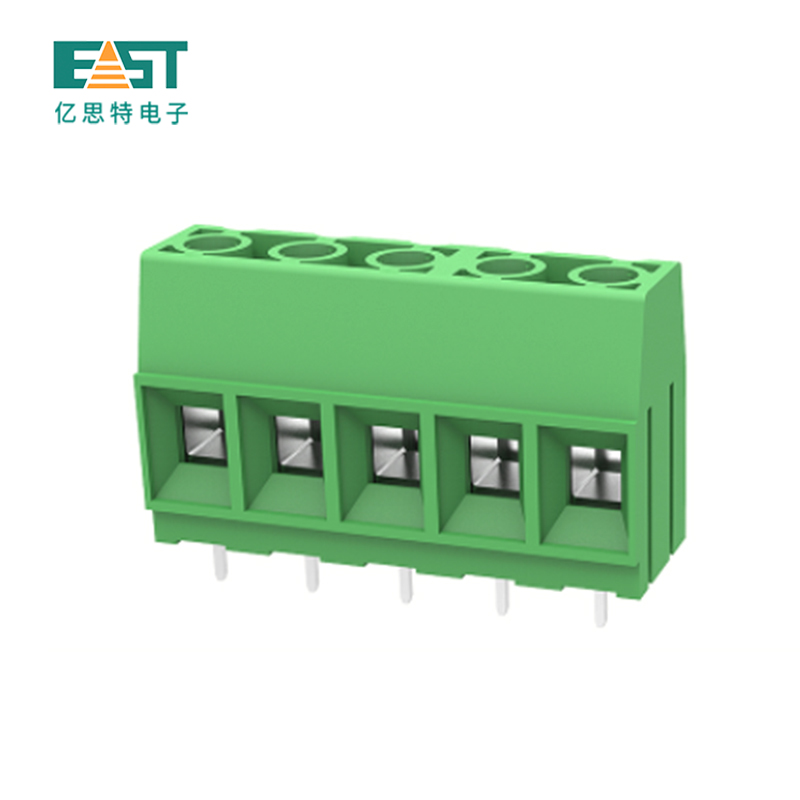

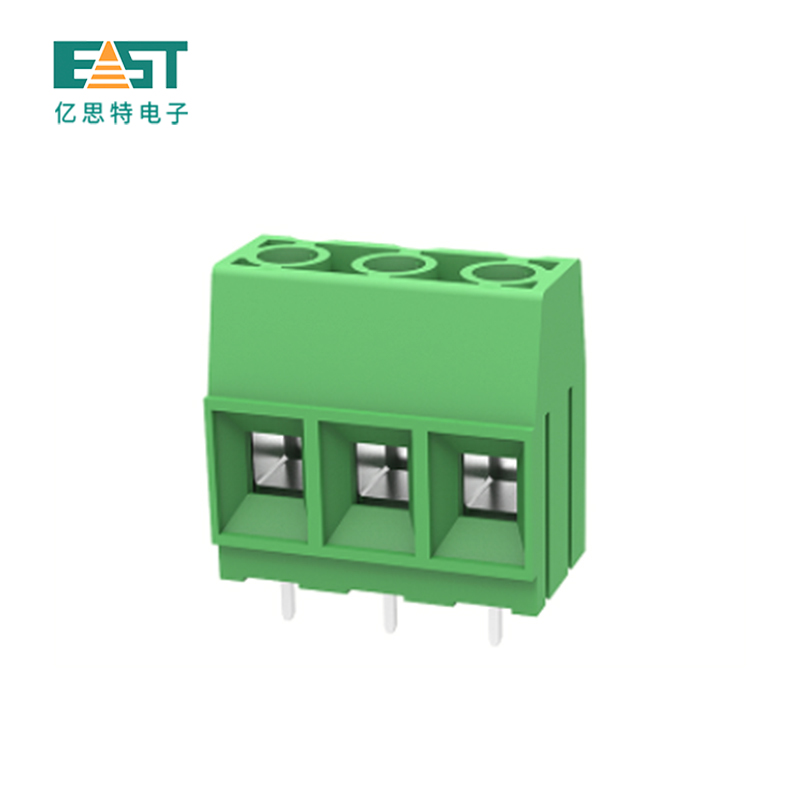

MX136T-10.16 Terminal block green color pitch 10.16mm

Pitch：10.16mm
  • MX136T-10.16 Terminal block green color pitch 10.16mm
  • MX136T-10.16 Terminal block green color pitch 10.16mm
  • MX136T-10.16 Terminal block green color pitch 10.16mm

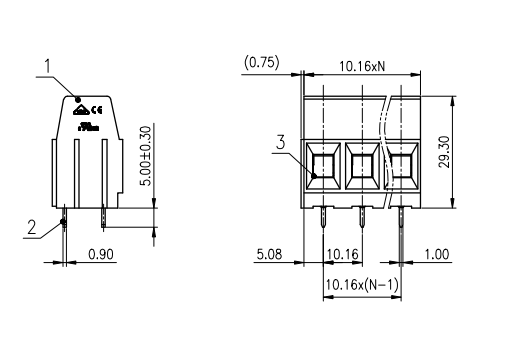

Product description Technical parameter Technical drawing Ordering method


Product brand：

Product color：
Green
Product bits：
2-3P
Product service：
Provide specification/step quotation/professional and attentive after-sales service
Product advantage：
● Screwed frame connection for greater contact surface and force, with bottom cover to protect the immersed tin
● The crimp frame can be moved up and down by twisting the screw, thus fixing the wire between the conductive part and the crimp frame and protecting the wire from damage
● Can connect wire cross-sectional area 20~6AWG (2.5~16mm²)
● High-current products, 2-bit and 3-bit products can be spliced at will to meet the requirements of different bit numbers
Internal components of the terminal：
Plastic shell: Nylon PA66
Conductive parts: phosphor bronze nickel-plated Anti-oxidation
Crimp frame: copper alloy nickel-plated
Screws: carbon steel screws, one or cross, galvanized zinc or nickel plated
