MX250B-2.50 Screwless terminal block gray color pitch 2.50 Wholesale

Home / Products / Terminal series / Screwless terminal block / MX250B-2.50 Screwless terminal block gray color pitch 2.50

Product Category

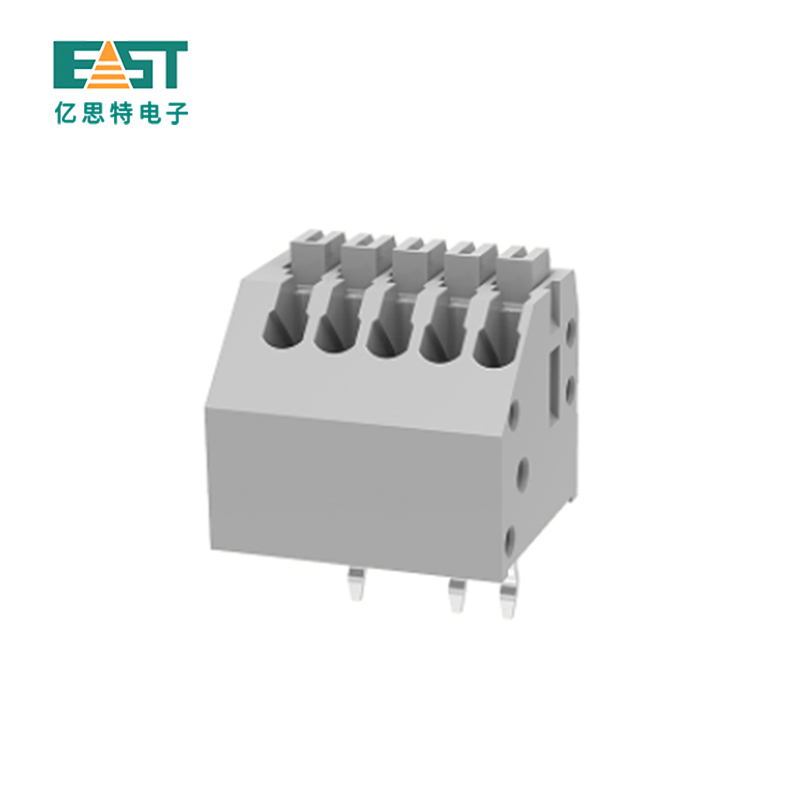

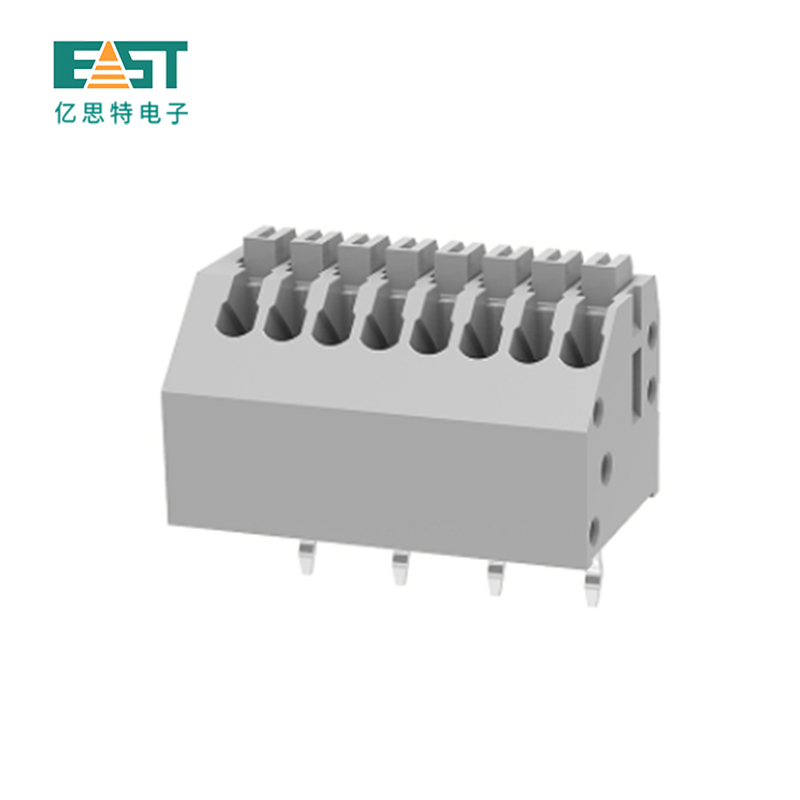

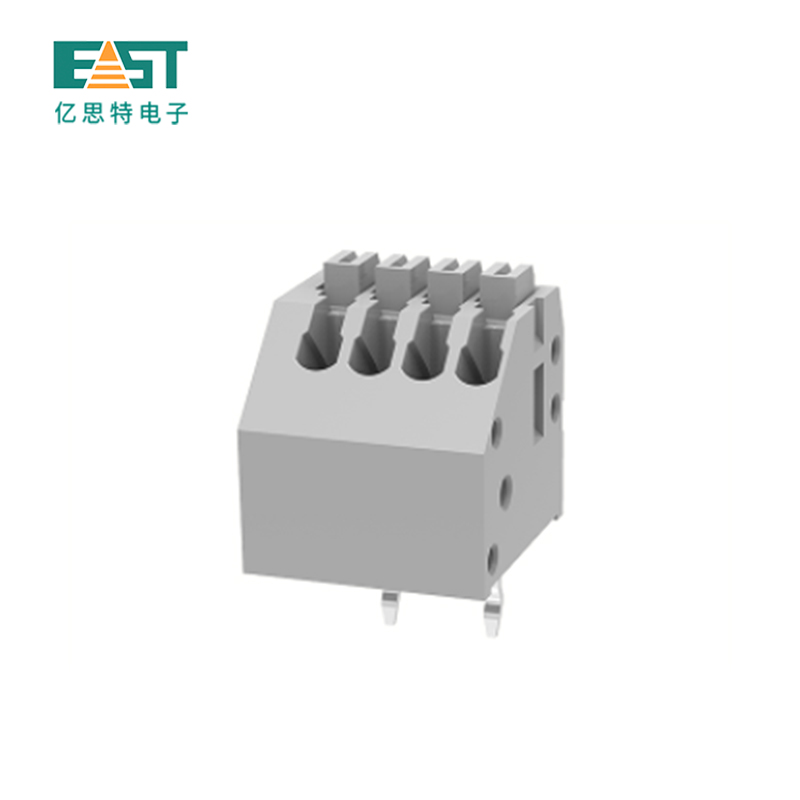

MX250B-2.50 Screwless terminal block gray color pitch 2.50

Pitch：2.50mm
  • MX250B-2.50 Screwless terminal block gray color pitch 2.50
  • MX250B-2.50 Screwless terminal block gray color pitch 2.50
  • MX250B-2.50 Screwless terminal block gray color pitch 2.50

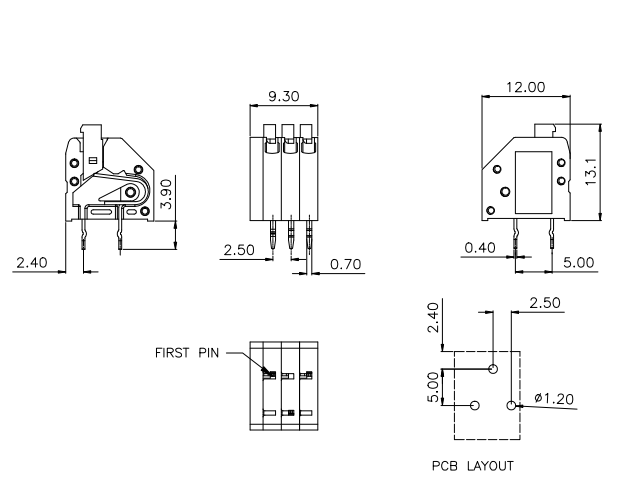

Product description Technical parameter Technical drawing Ordering method

PCB Spring terminal blocks has a spacing distance including 2.50mm、2.54mm、3.50mm、4.0mm、5.0mm, etc. This terminal works by clamping the wire by the button / handle directly to achieve conduction, which is convenient and easy to use. Most spring terminals are combined piece by piece. All products have passed the certification of UL, TUV, CE, CQC, REACH, and Rohs. The flame retardant reaches the grade of UL 94 V-0.



Product brand：

Product color：
Grey・Other colors customized
Product bits：
Customizable, with flexible digits
Product services：
Provide specification/step quotation/professional and attentive after-sales service
Product advantages：
● Small pitch structure/shrapnel fastening technology/convenient and simple direct insertion of wires
● Support single core wire, multi-core wire.
● Can connect wire cross-sectional area 24-20AWG (0.2~1.0mm²)
● Environmentally friendly: UL94V-0 flame retardant rating
Internal components of the terminal：
Plastic shell: nylon PA66
Conductive parts: phosphor bronze nickel-plated, strong resistance to oxidation
Shrapnel: stainless steel, good ductility, high elasticity
