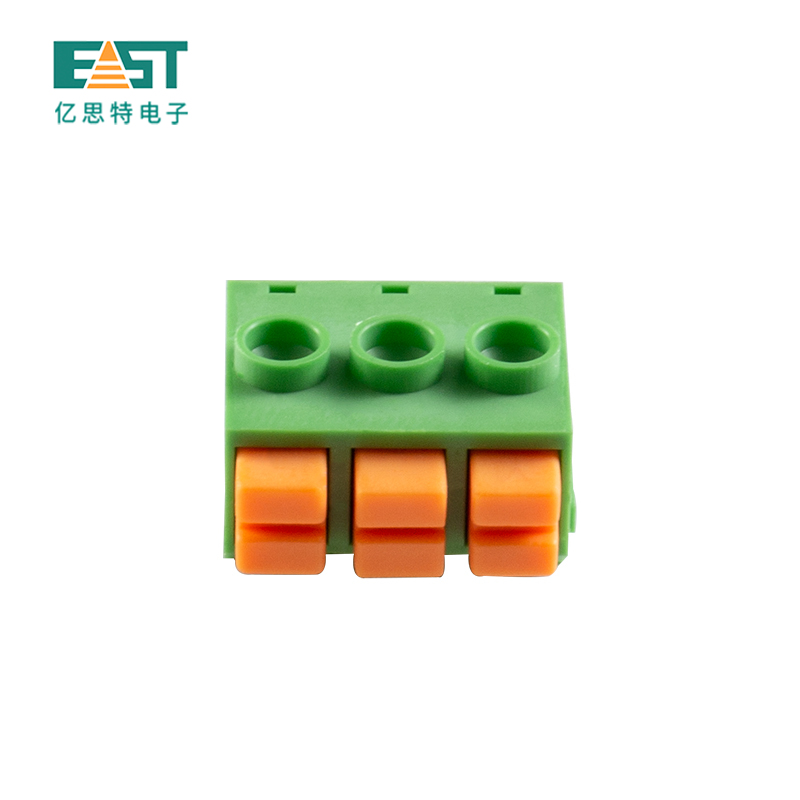

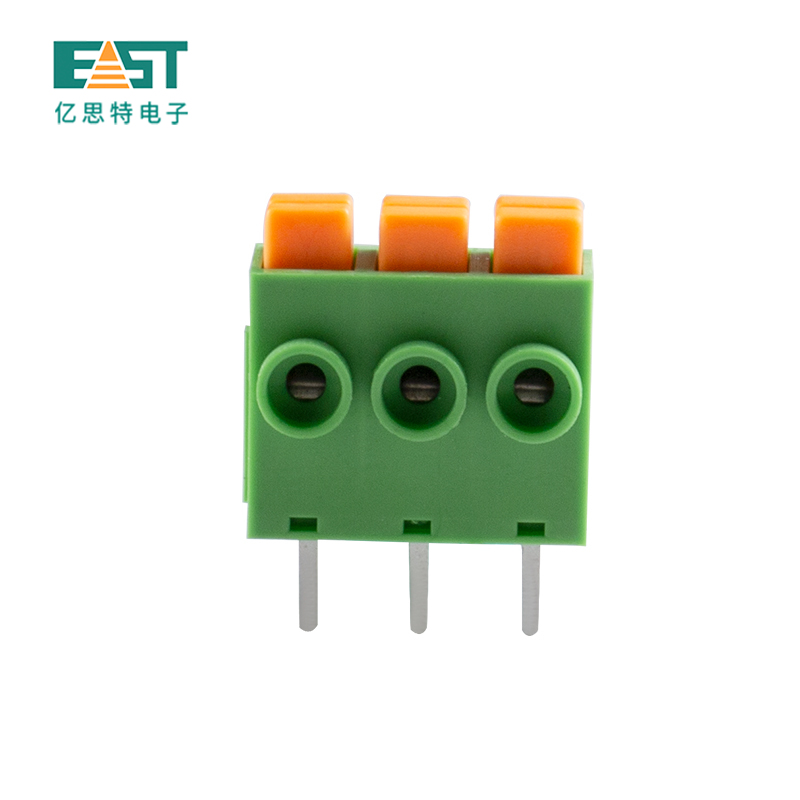

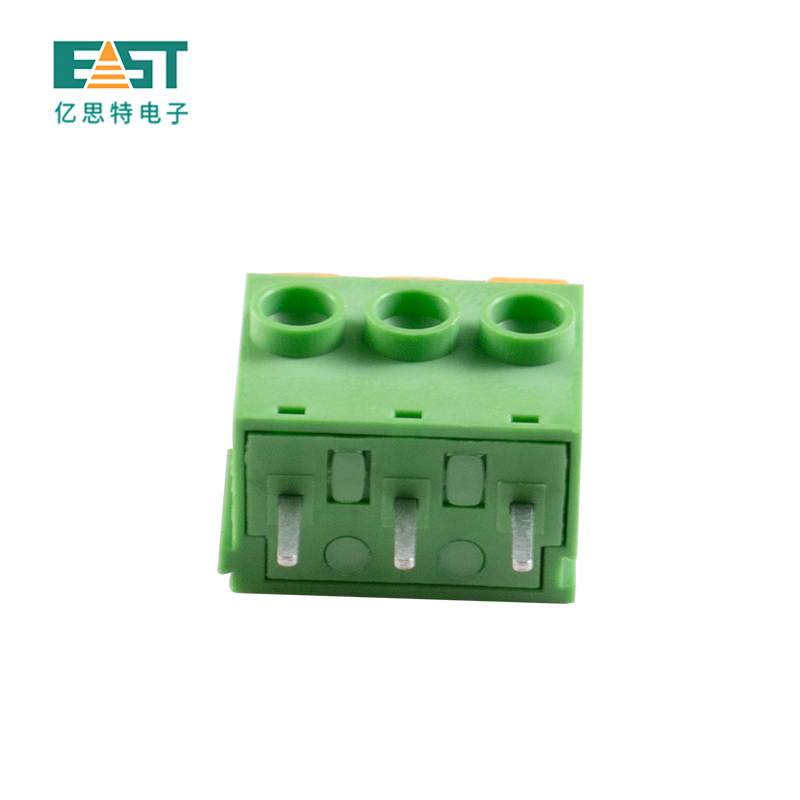

MX390-5.00 Screwless terminal block right angle orange button

Pitch：5.00mm
  • MX390-5.00 Screwless terminal block right angle orange button
  • MX390-5.00 Screwless terminal block right angle orange button
  • MX390-5.00 Screwless terminal block right angle orange button

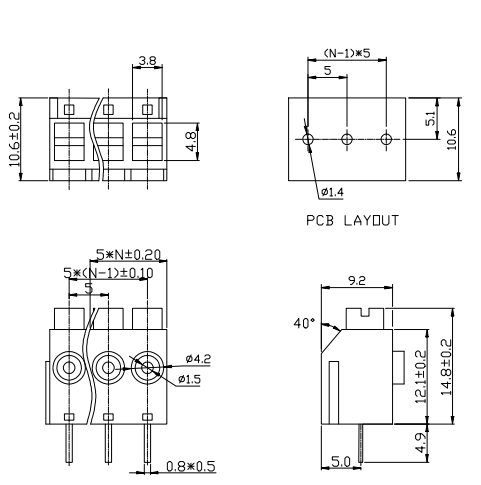

Product description Technical parameter Technical drawing Ordering method

PCB Spring terminal blocks has a spacing distance including 2.50mm、2.54mm、3.50mm、4.0mm、5.0mm, etc. This terminal works by clamping the wire by the button / handle directly to achieve conduction, which is convenient and easy to use. Most spring terminals are combined piece by piece. All products have passed the certification of UL, TUV, CE, CQC, REACH, and Rohs. The flame retardant reaches the grade of UL 94 V-0.



Product brand：

Product color：
Green・Grey・Other colors customized
Product bits：
2-24P can be produced
Product services：
Provide specification/step quotation/professional and attentive after-sales service
Product advantages：
● Small pitch structure/shrapnel fastening technology/safety and stability
● Support single core wire, multi-core wire.
● Can connect wire cross-sectional area 22-18AWG (0.5~1.0mm²)
● Environmentally friendly: UL94V-0 flame retardant rating
Internal components of the terminal：
Plastic shell: nylon PA66
Conductive parts: phosphor bronze nickel-plated, strong resistance to oxidation
Shrapnel: stainless steel, good ductility, high elasticity

Leave your requirements, and we will contact you!
