Product brand:
Product color:
Black
Product category:
Shield, non-shielding, with LED
Product service:
Provide specifications / ladder quotation / professional and intimate after-sales service
Product advantages:
● Male and female docking is fast and efficient: Compared with the common goods, RJ45 connector has an excellent advantage, that is when you buy our goods before formal operation, you no longer need to miscellaneous difficult welding work, it can work as long as the male and female plug docking correctly. It doesn't need a lot of hard work, which make your using process efficient and easy.
● High commodity test function index: RJ45 connector is the solid plastic shell made by fine nylon with the use of various specifications of registered jack of five, super five or six types of cable, which is convenient and fast for male and female docking. The performance of the effect is immeasurable although all goods are concise and comprehensive. It can meet the long-term use of underwater in extremely harsh environment, and the effect of waterproof and dustproof can reach the world IP68 specification. The sealing skills of RJ45 connector can reach the forefront of professional test specification, and the service life is much longer than common waterproof joint.
● IP68 waterproof rating certification: The RJ45 connector has passed the partially certified IP68 waterproof grade test and obtained the certificate. And it has also passed other test certification, such as waterproof connector CE certification, RoHS certification, UL certification, CCC certification. It is always a good choice to buy the product with high quality and low price.
Product composition:
Mental pin: phosphorus copper wire / phosphorus bronze flat pin
Plastic housing: Nylon PBT / PA66
Electroplating: gilded

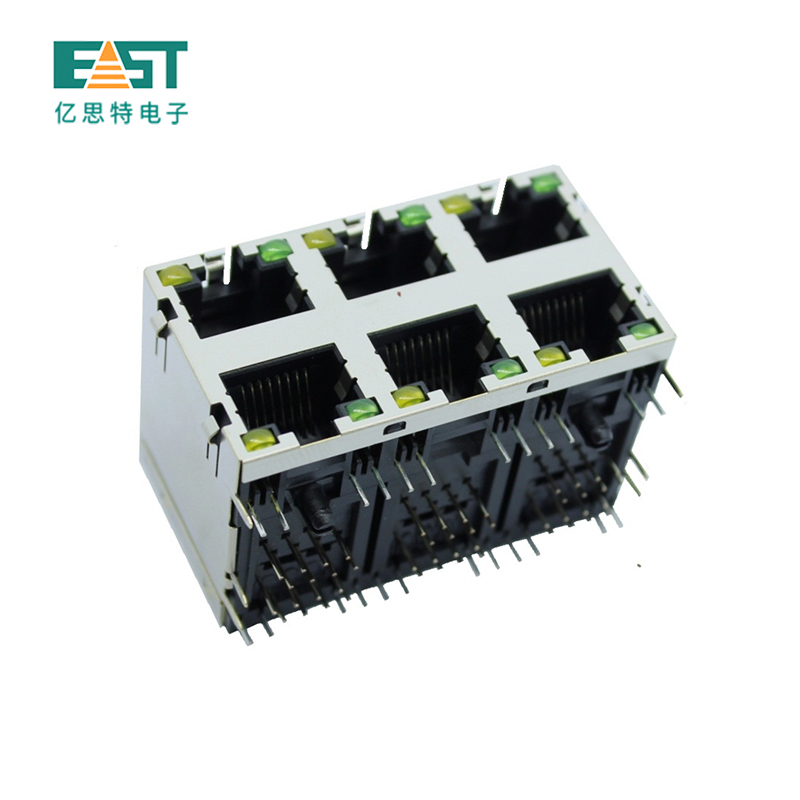

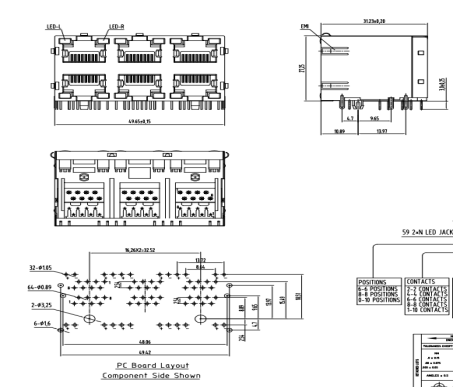

Product Model: |
5JB-2*3-8P8C LED shield |
Material data |
Housing Material: |
Glass filled polyester UL94V-0 (PBT/NYLON) |
Contact Material: |
Phosphor BronzeΦ0.45mm or T=0.3mm |
Plating: Gold Plating over Nickel,Plating Thickness: |
1.5μ/3μ/6μ/15μ/30μ/50μ μ |
Shield : |
Copper alloy 0.2mm thickness plating nickel |
Electrical parameters |
UL/IEC |
Voltage/urrent Rating: |
125VAC RMS /1.5AMP |
Contact /Insulation Resistance: |
50mΩ Max/500mΩMin@500VDC |
Dielectric Withstanding Resistance: |
1000VAC RMS 50Hz 1 minute |
Mechnical parameters |
Durability: |
750 cycles Min |
PCB retention pre-solder: |
1LBMin |
Environmental data |
Storage: |
-40℃-80℃ ;Operation:0℃-70℃ |
Wave soldering temperature: |
240±5℃ for 5-10 seconds |
